The 2000 Dodge Durango relies on a complex electrical system to operate various components, from the headlights to the power windows. At the heart of this system lies the fuse box, protecting circuits from overloads. Understanding the 2000 Dodge Durango fuse box diagram is crucial for diagnosing electrical issues and performing necessary repairs safely and effectively. This article provides a comprehensive guide to understanding and utilizing the fuse box diagram for your vehicle.
Benefits and Purpose of Understanding Your Fuse Box
Knowing your 2000 Dodge Durango fuse box diagram offers several key advantages:
- Efficient Troubleshooting: Quickly identify and replace blown fuses, saving time and money on repairs.
- Electrical System Understanding: Gain a better grasp of how your vehicle’s electrical components are interconnected.
- Preventative Maintenance: Detect potential problems early on, preventing more significant electrical damage.
- Safety: Working with electrical systems requires caution. Understanding the fuse box helps you avoid electrical shocks and damage to your vehicle.
- Cost Savings: Simple fuse replacements can often be done yourself, eliminating the need for a mechanic for minor electrical issues.
Key Components and Structure of the Fuse Box
The 2000 Dodge Durango fuse box typically contains:
- Fuses: These are sacrificial components designed to break the circuit when current exceeds a safe level, protecting valuable electronics. Different fuses have different amperage ratings.
- Relays: Electrically operated switches that control high-current circuits using a low-current signal. Common relays manage components such as the fuel pump, starter motor, and headlights.
- Fuse Puller: A small tool used to safely remove and install fuses without damaging them.

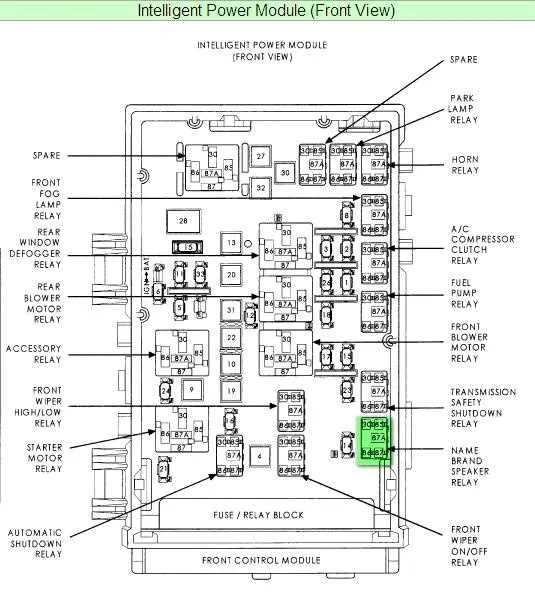

- Cover/Diagram: Typically, the fuse box cover has a diagram illustrating the location and function of each fuse and relay. This is your primary resource.
Fuse boxes are typically located in one or both of these locations:
- Under the Hood: Usually near the battery or engine compartment. This box contains fuses for essential vehicle functions.
- Inside the Cabin: Often located under the dashboard or in the glove compartment. This box generally controls interior features like lights, radio, and power windows.
Practical Application
Here’s a step-by-step guide to using the 2000 Dodge Durango fuse box diagram:
- Identify the Problem: Determine which electrical component is malfunctioning.
- Locate the Fuse Box: Determine which fuse box (under the hood or inside the cabin) is relevant to the faulty component.
- Consult the Diagram: Refer to the fuse box cover or your owner’s manual to find the fuse associated with the malfunctioning component. The 2000 Dodge Durango fuse box diagram will label each fuse and its amperage.
- Inspect the Fuse: Use a fuse puller to carefully remove the fuse. Visually inspect it. If the wire inside the fuse is broken or blackened, the fuse is blown.
- Replace the Fuse: Replace the blown fuse with a new fuse of the exact same amperage rating. Using a fuse with a higher amperage can damage the circuit.
- Test the Component: Turn on the component to see if it now functions correctly. If the fuse blows again immediately, there may be a short circuit in the wiring or the component itself. Further diagnosis is then required.
1. Troubleshooting Common Fuse-Related Issues
- Repeatedly Blown Fuses: Indicates a short circuit or overload. Do not simply replace the fuse repeatedly. This can cause a fire. Investigate the underlying cause.
- Intermittent Electrical Problems: May be caused by a loose fuse connection or a corroded fuse terminal. Clean terminals and ensure fuses are seated securely.
- Incorrect Fuse Size: Using the wrong amperage fuse can lead to component damage or electrical fires. Always use the specified amperage.
2. Tips for Best Practice When Working with Fuses
- Safety First: Disconnect the negative battery terminal before working on any electrical system to minimize the risk of shocks or shorts.
- Use the Right Tools: Use a fuse puller to avoid damaging the fuses or the fuse box.
- Keep a Spare Fuse Kit: Have a selection of fuses with different amperage ratings readily available for quick replacements.
- Document Your Work: Keep a record of any fuse replacements or electrical repairs you perform.
- Consult a Professional: If you’re unsure about any aspect of the electrical system, consult a qualified mechanic.
Frequently Asked Questions About the 2000 Dodge Durango Fuse Box
- Q: Where can I find a 2000 Dodge Durango fuse box diagram? A: The diagram is usually located on the inside of the fuse box cover or in your owner’s manual. You can also find diagrams online through various automotive resources.
- Q: What does fuse amperage mean? A: Amperage is a measure of electrical current. A fuse with a higher amperage rating allows more current to flow before breaking the circuit.
- Q: Is it safe to use a fuse with a higher amperage rating than specified? A: No, using a fuse with a higher amperage rating is dangerous and can damage the circuit or cause an electrical fire.
- Q: What causes a fuse to blow? A: A fuse blows when the electrical current exceeds its amperage rating, usually due to a short circuit, overload, or component failure.
- Q: How do I test a fuse? A: You can test a fuse visually (look for a broken wire) or use a multimeter to check for continuity.
Conclusion
Understanding the 2000 Dodge Durango fuse box diagram is an invaluable skill for any vehicle owner. By following the guidelines outlined in this article, you can troubleshoot electrical problems effectively, perform necessary repairs safely, and maintain the reliability of your vehicle’s electrical system. Proper knowledge and practice in fuse identification and replacement will help you save time, money, and ensure the continued safe operation of your Durango.
