The 2015 Hyundai Sonata relies on a complex electrical system to power its various components, from the headlights and infotainment system to critical safety features like the airbags. At the heart of this system lies the fuse box, a crucial protective mechanism. A blown fuse can disrupt essential functions. This article provides a detailed guide to understanding the 2015 Hyundai Sonata fuse box diagram, helping you identify fuse locations, understand their functions, and troubleshoot common electrical problems.
Benefits of Understanding Your 2015 Sonata Fuse Box
- Quick Troubleshooting: Easily identify and replace blown fuses, saving time and money on unnecessary repairs.
- Preventing Further Damage: Addressing electrical issues promptly can prevent more significant and costly damage to your vehicle’s electrical system.
- DIY Maintenance: Perform basic electrical maintenance tasks yourself, enhancing your understanding of your car.
- Safety Assurance: Knowing the location and function of essential fuses (e.g., airbag fuse) contributes to overall vehicle safety.
Key Components and Structure of the 2015 Sonata Fuse Box
The 2015 Hyundai Sonata typically has at least two fuse box locations:
- Interior Fuse Box: Usually located under the dashboard, often on the driver’s side. This fuse box contains fuses for interior components like the radio, lights, and power windows.
- Engine Compartment Fuse Box: Located in the engine bay, this fuse box houses fuses for vital engine components, including the fuel pump, ignition system, and cooling fan.

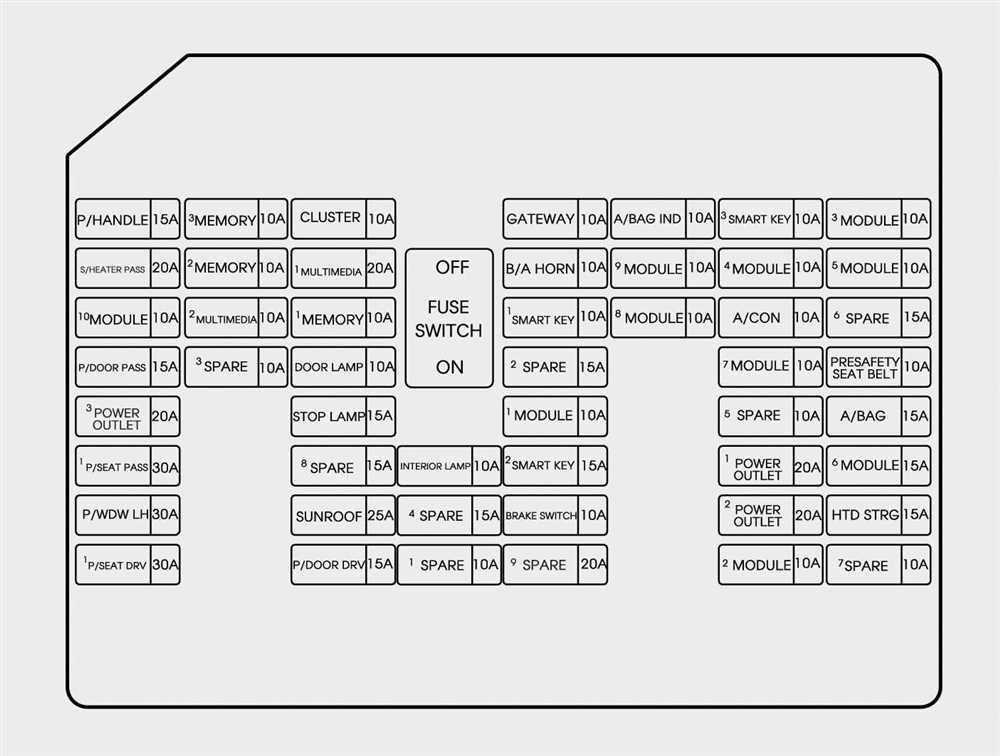

Each fuse box contains a diagram, often printed on the inside of the fuse box cover, detailing the function of each fuse. This 2015 Hyundai Sonata fuse box diagram is crucial for identifying the specific fuse related to the malfunctioning component. Fuses are typically color-coded according to their amperage rating, making identification easier.
Practical Application
Here’s a step-by-step guide to using the fuse box diagram to troubleshoot electrical problems:
- Identify the Problem: Determine which component is not working (e.g., the cigarette lighter, the headlights, the turn signals).
- Locate the Fuse Box: Find the relevant fuse box (interior or engine compartment).
- Consult the Diagram: Carefully review the 2015 Hyundai Sonata fuse box diagram to identify the fuse associated with the malfunctioning component. The diagram will show the fuse number, function, and amperage.
- Inspect the Fuse: Use a fuse puller or needle-nose pliers to remove the fuse. Visually inspect the fuse. A blown fuse will have a broken filament.
- Replace the Fuse: Replace the blown fuse with a new fuse of the same amperage rating. Never use a fuse with a higher amperage, as this can cause serious damage.
- Test the Component: Turn on the ignition and test the component to see if it is now working.
1. Troubleshooting Common Fuse-Related Issues
- Repeated Blown Fuses: If a fuse blows repeatedly, it indicates a more serious underlying problem, such as a short circuit or an overloaded circuit. Consult a qualified mechanic.
- Fuse Puller Not Available: Needle-nose pliers can be used, but exercise caution to avoid damaging the fuse or fuse box.
- Incorrect Fuse Rating: Always replace a blown fuse with one of the correct amperage rating. Using a higher amperage fuse can overload the circuit and cause a fire.
2. Tips for Maintaining Your 2015 Sonata's Electrical System
- Keep a spare set of fuses in your vehicle.
- Regularly inspect your car’s electrical components for signs of wear or damage.
- Consult a professional mechanic for any electrical issues beyond basic fuse replacement.
Frequently Asked Questions (FAQs)
- Where is the fuse box located in a 2015 Hyundai Sonata?
- The 2015 Hyundai Sonata typically has two fuse box locations: one inside the cabin, usually under the dashboard on the driver’s side, and another in the engine compartment.
- How can I find the correct fuse for a specific component?
- Consult the 2015 Hyundai Sonata fuse box diagram located on the inside of the fuse box cover. The diagram indicates the function and amperage of each fuse.
- What should I do if a fuse keeps blowing?
- Repeatedly blowing fuses suggest a more significant electrical problem, such as a short circuit. Seek professional assistance from a qualified mechanic.
- Can I use a fuse with a higher amperage rating than the original?
- No. Using a fuse with a higher amperage rating can overload the circuit and potentially cause a fire. Always use the correct amperage rating.
- What tools do I need to replace a fuse?
- Typically, you’ll need a fuse puller (often included in the fuse box) or needle-nose pliers and replacement fuses of the correct amperage rating.
Conclusion
Understanding the 2015 Hyundai Sonata fuse box diagram is essential for maintaining your vehicle’s electrical system. By familiarizing yourself with the fuse locations and their functions, you can quickly diagnose and resolve common electrical problems, saving time and money while ensuring the safety and reliability of your vehicle. Regular maintenance and adherence to safety guidelines are paramount for preventing more serious electrical issues.
