The ignition switch is a critical component in any Chinese ATV (All-Terrain Vehicle). It controls the electrical power to the engine, enabling starting, running, and shutdown. Understanding the function, wiring, and potential issues with a Chinese ATV ignition switch is essential for proper maintenance and ensuring safe operation. This guide provides comprehensive information on Chinese ATV ignition switches, including their purpose, wiring diagrams, troubleshooting tips, and replacement procedures.
Benefits and Purpose of a Functional Ignition Switch
- Controls Power to the Engine: The primary function is to allow or prevent electrical current flow to the ATV’s engine components, enabling starting and operation.
- Security: Prevents unauthorized use of the ATV by requiring a key to activate the ignition system.
- Safety: Allows for quick and easy engine shutdown in emergency situations.
- Proper Electrical Circuit Management: A functioning switch ensures the correct activation of circuits like the starter motor, lights, and other accessories.
Understanding Key Components and Wiring Diagrams

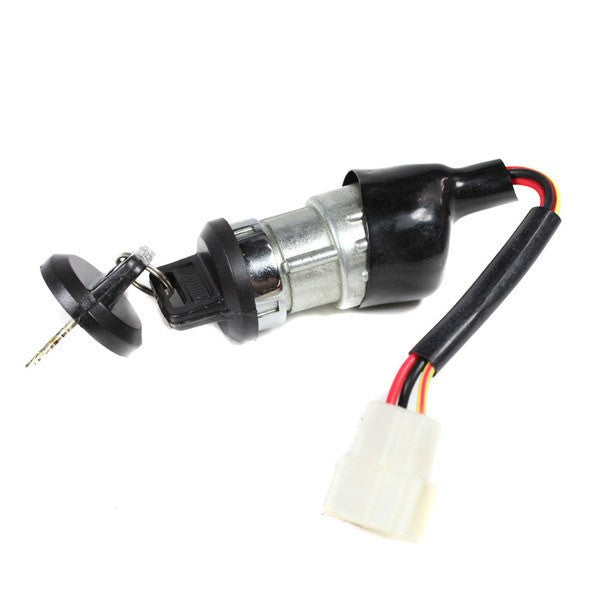

A typical Chinese ATV ignition switch consists of several terminals, each corresponding to a specific function. Common terminals include:
- Battery (+): Connects directly to the ATV’s battery, providing power to the switch.
- Ignition (IGN): Provides power to the ignition coil and other engine-related components.
- Starter (STR): Activates the starter solenoid to engage the starter motor.
- Lights (L): Powers the headlights and taillights.
- Ground (G): Provides a ground connection for the switch.
Wiring Diagram Interpretation:
Understanding the wiring diagram is crucial for troubleshooting and replacing a Chinese ATV ignition switch. Typically, a wiring diagram will illustrate the connection of each terminal to its respective component. Color-coded wires are often used to simplify identification. Always consult the specific wiring diagram for your ATV model, as variations can exist. Multimeter is an essential tool.
Practical Application
Replacing a Chinese ATV ignition switch is a straightforward process, but safety precautions are paramount. Follow these steps:
- Disconnect the Battery: Always disconnect the negative terminal of the battery to prevent electrical shorts.
- Remove the Old Switch: Carefully disconnect the wires from the old switch, noting their positions. Photographing the wiring before disconnection is highly recommended.
- Install the New Switch: Connect the wires to the corresponding terminals on the new switch, matching the original wiring configuration.
- Secure the Switch: Mount the new switch securely in its designated location.
- Reconnect the Battery: Reconnect the battery and test the switch functionality.
1. Troubleshooting Common Issues
- ATV Won’t Start: Check the battery voltage, ignition switch connections, and starter solenoid. A faulty ignition switch can prevent the starter from engaging.
- Lights Don’t Work: Examine the wiring connections to the lights terminal on the switch. A blown fuse can also cause this issue.
- Intermittent Problems: Loose or corroded connections can cause intermittent starting or lighting issues. Clean and tighten all connections.
2. Tips for Best Practice
- Use a Multimeter: A multimeter is an invaluable tool for testing the continuity of the switch and voltage at each terminal.
- Inspect Wiring: Regularly inspect the wiring for damage, corrosion, or loose connections.
- Use Dielectric Grease: Apply dielectric grease to the connections to prevent corrosion.
- Consult the Manual: Always refer to the ATV’s service manual for specific wiring diagrams and troubleshooting procedures.
Frequently Asked Questions (FAQs)
- Q: How do I know if my ignition switch is bad? A: Common symptoms include the ATV not starting, lights not working, or intermittent electrical problems.
- Q: Can I bypass the ignition switch? A: While possible for troubleshooting, bypassing the ignition switch permanently compromises security and is not recommended.
- Q: Where can I find a replacement ignition switch for my Chinese ATV? A: Replacement switches are available from online retailers specializing in ATV parts or local ATV repair shops.
- Q: What tools do I need to replace an ignition switch? A: You’ll typically need a screwdriver, pliers, wire stripper/crimper, and a multimeter.
- Q: How do I read a Chinese ATV wiring diagram? A: Look for a key or legend that explains the color codes and symbols used in the diagram.
Conclusion
The Chinese ATV ignition switch is a vital component for safe and reliable operation. Understanding its function, wiring, and potential issues is essential for proper maintenance and troubleshooting. By following the guidelines outlined in this article, owners can ensure their ATV’s ignition system functions correctly, promoting safety and longevity. Regular inspection and maintenance are critical for preventing problems and maximizing the lifespan of the ignition switch and the ATV as a whole.
