Coolster 125cc Atv Ignition Switch

The Coolster 125cc ATV is a popular choice for recreational riding. A critical component for its operation is the ignition switch. This switch controls the flow of electricity to the engine, allowing it to start and run. A faulty ignition switch can lead to starting problems and other issues, making understanding its function and maintenance crucial for any Coolster 125cc ATV owner.

Benefits and Purpose of a Functional Ignition Switch

A properly functioning Coolster 125cc ATV ignition switch offers several key benefits:

Reliable Starting: Ensures the ATV starts quickly and consistently.
Security: Prevents unauthorized use of the ATV by acting as a key-operated on/off switch.
Circuit Protection: Integrated safety features can help protect the ATV’s electrical system.
Safe Operation: Allows for easy and safe shutdown of the engine in emergencies.

Key Components and Structure of the Ignition Switch

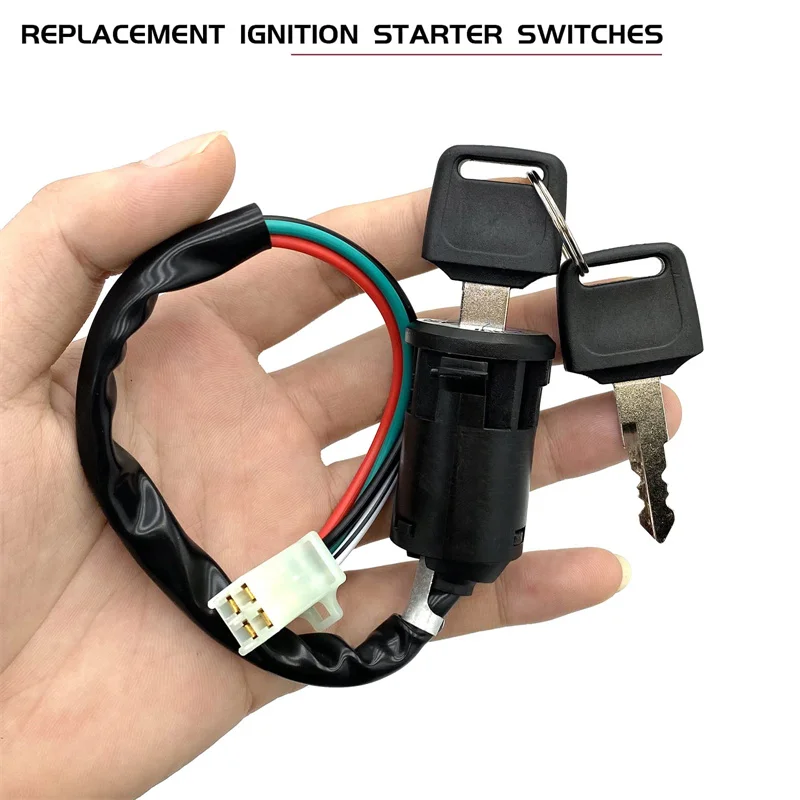

The Coolster 125cc ATV ignition switch typically consists of the following components:

Key Cylinder: Accepts the key and allows the switch to be turned.
Switch Contacts: Internal contacts that make or break electrical circuits based on the key position.
Wiring Harness Connector: Connects the switch to the ATV’s electrical system via wires.
Housing: Protects the internal components from the elements.

Practical Application

Understanding the wiring diagram of the Coolster 125cc ATV ignition switch is essential for troubleshooting and replacement. A typical wiring setup includes:

Battery Positive (+): Provides power to the switch.
Ignition Coil: Supplies power to the ignition coil to generate the spark.
Starter Solenoid: Activates the starter motor.
Ground (-): Provides a return path for the electrical current.

Consult the ATV’s service manual or a reliable online resource for a detailed wiring diagram specific to your model. Incorrect wiring can damage the electrical system.

1. Troubleshooting Common Ignition Switch Issues

Common problems with the Coolster 125cc ATV ignition switch include:

ATV Doesn’t Start: Check the battery, connections, and fuse before suspecting the switch.
Key Won’t Turn: Could be due to a worn key or a damaged cylinder.
Intermittent Starting: Indicates loose connections or corroded contacts within the switch.
Blown Fuses: A short circuit within the switch can cause fuses to blow.

2. Tips for Maintaining Your Coolster 125cc ATV Ignition Switch

Here are some helpful tips:

Keep the Key Clean: Dirt and debris can damage the key cylinder.
Use Dielectric Grease: Apply dielectric grease to the wiring connections to prevent corrosion.
Inspect Wiring Regularly: Check for loose or damaged wires.
Replace the Switch When Needed: If the switch is faulty, replace it with a new one. Consider an OEM (Original Equipment Manufacturer) or reputable aftermarket replacement.

Frequently Asked Questions (FAQs)

Q: How do I test my Coolster 125cc ATV ignition switch?

A: Use a multimeter to check for continuity between the terminals in different key positions. Refer to your ATV’s wiring diagram for the correct pinout.
Q: Can I bypass the ignition switch?

A: Bypassing the ignition switch is generally not recommended as it compromises security and can potentially damage the electrical system.
Q: Where can I buy a replacement ignition switch for my Coolster 125cc ATV?

A: Replacement ignition switches can be purchased from online retailers, ATV parts stores, and local dealerships.
Q: Is it easy to replace the ignition switch on a Coolster 125cc ATV?

A: Replacing the ignition switch is a relatively straightforward process for those with basic mechanical skills. However, ensure you disconnect the battery before starting, and always refer to a wiring diagram.

Conclusion

The Coolster 125cc ATV ignition switch is a small but vital component for the ATV’s operation. Understanding its function, wiring, and potential issues is essential for maintaining the ATV’s reliability and ensuring safe operation. Regular maintenance and prompt replacement of a faulty switch will keep your Coolster 125cc ATV running smoothly for years to come.
