The Honda GX340 is a robust and reliable engine used in various applications, from generators to pressure washers. A functional kill switch is paramount for safety, allowing immediate engine shutdown in emergencies or during maintenance. This article provides a detailed overview of Honda GX340 kill switch wiring, encompassing diagrams, troubleshooting, and safety considerations.
Benefits and Purpose of a Functional Kill Switch
A properly wired kill switch offers numerous benefits:
- Enhanced Safety: Immediate engine shut-off in emergencies prevents potential accidents.
- Engine Protection: Prevents damage from over-revving or other malfunctions.
- Simplified Maintenance: Allows safe and controlled engine stops during servicing.
- Compliance: Meeting safety regulations for equipment operation.
Without a properly functioning kill switch, operating machinery equipped with a Honda GX340 engine becomes significantly more dangerous and increases the risk of property damage.
Understanding the Key Components and Wiring Diagram
The Honda GX340 kill switch circuit is relatively simple. The key components include:

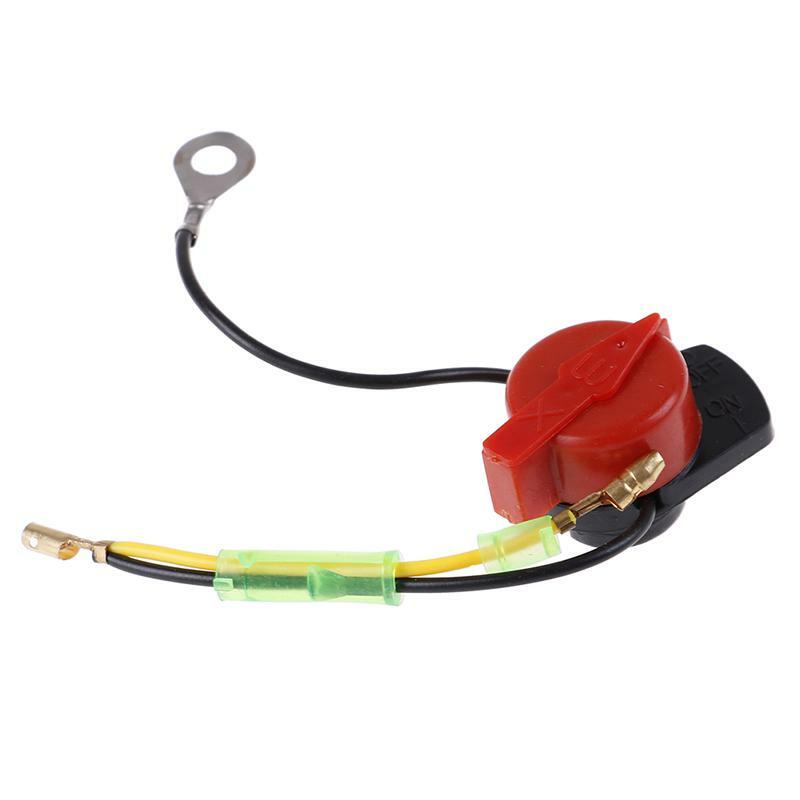

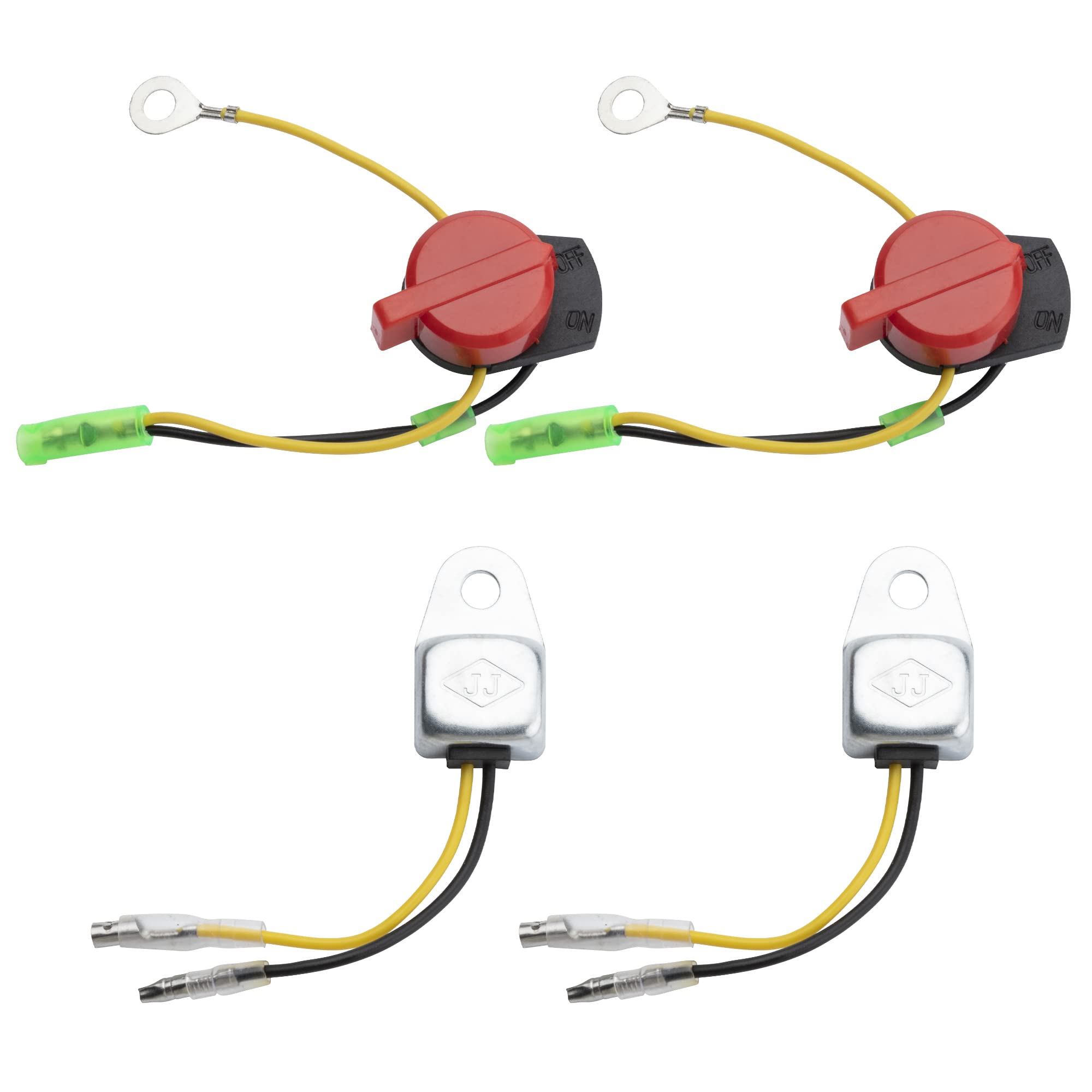

- Kill Switch: A normally open switch that, when closed, grounds the ignition circuit.
- Ignition Coil: Generates the high-voltage spark for combustion.
- Wiring Harness: Connects the switch, coil, and engine ground.
- Engine Ground: Provides a common ground point for the electrical system.
The kill switch wiring works by grounding the ignition coil, effectively short-circuiting it and preventing spark generation. Consult your Honda GX340 engine’s service manual for the precise wiring diagram specific to your model. Generally, one wire from the kill switch will connect to the ignition coil, and the other wire will connect to a suitable ground point on the engine block or frame. Proper wire gauge and secure connections are vital.
Practical Application
Follow these steps to connect and test your Honda GX340 kill switch:
- Disconnect the Spark Plug: This is a crucial safety measure to prevent accidental starting.
- Locate the Ignition Coil: Identify the terminal on the ignition coil designated for the kill switch connection (often marked with a ground symbol).
- Connect the Wires: Attach one wire from the kill switch to the ignition coil terminal and the other to a clean, reliable ground.
- Secure Connections: Ensure all connections are tight and corrosion-free. Use dielectric grease to protect against moisture.
- Test the Switch: Reconnect the spark plug. Attempt to start the engine. With the kill switch in the “off” position, the engine should not start. With the switch in the “on” position (normal running condition), the engine should start and run normally.
Always double-check your wiring against the official Honda GX340 wiring diagram for your specific model to prevent damage.
1. Troubleshooting Common Kill Switch Issues
Common problems with the kill switch circuit include:
- Faulty Switch: The switch itself may be defective. Test it with a multimeter for continuity.
- Loose Connections: Wires may be loose or corroded. Clean and tighten all connections.
- Damaged Wiring: Wires may be frayed or broken. Replace damaged wiring.
- Incorrect Wiring: The switch may be wired incorrectly. Refer to the wiring diagram.
2. Tips for Maintaining a Reliable Kill Switch
- Regular Inspection: Inspect the switch and wiring regularly for damage or corrosion.
- Clean Connections: Clean all connections periodically with a wire brush and apply dielectric grease.
- Secure Mounting: Ensure the switch is securely mounted to prevent damage from vibration.
- Proper Wiring: Always use the correct wiring gauge and follow the manufacturer’s instructions.
Frequently Asked Questions (FAQs)
Here are some frequently asked questions about Honda GX340 kill switch wiring:
- Q: What happens if the kill switch wiring is incorrect? A: Incorrect wiring can prevent the engine from starting or stopping, potentially damaging the ignition system.
- Q: How do I test if my kill switch is working correctly? A: Use a multimeter to check for continuity when the switch is in the “off” position (should have continuity) and no continuity in the “on” position. Also, ensure the engine stops when the switch is activated.
- Q: Can I use any kill switch with a Honda GX340 engine? A: It is recommended to use a kill switch specifically designed for small engines, ensuring correct voltage and amperage ratings.
- Q: Where can I find the correct wiring diagram for my Honda GX340? A: Refer to your engine’s service manual or the Honda Power Equipment website.
Conclusion
Understanding and properly implementing Honda GX340 kill switch wiring is critical for safety and engine longevity. By following the guidelines and troubleshooting tips outlined in this article, users can ensure their equipment operates safely and reliably. Prioritize safety by disconnecting the spark plug before working on the electrical system and consulting the correct wiring diagram.
