The Kia Soul’s electrical system is protected by a series of fuses housed within fuse boxes. Understanding the Kia Soul fuse box diagram is crucial for diagnosing and resolving electrical issues, preventing further damage, and ensuring the safe operation of your vehicle. This article provides a comprehensive overview of the Kia Soul’s fuse box, its components, and how to use the diagram effectively.
Benefits and Purpose of Understanding Fuse Box Diagrams
Having knowledge of your Kia Soul’s fuse box diagram offers several key advantages:
- Efficient Troubleshooting: Quickly locate and identify blown fuses, saving time and money on professional repairs.
- Preventing Electrical Damage: Replacing a blown fuse promptly prevents potential damage to sensitive electronic components.
- Performing Basic Maintenance: Replacing fuses is a simple task that can be performed by vehicle owners, saving on labor costs.
- Enhanced Safety: Understanding the electrical system allows for safer operation of the vehicle, especially when adding aftermarket accessories.
Key Components and Structure of the Kia Soul Fuse Box
The Kia Soul typically has multiple fuse boxes, each protecting different circuits. These are generally located in the following areas:
- Engine Compartment Fuse Box: Houses fuses for critical engine components, headlights, and other high-current systems.
- Interior Fuse Box (Dashboard or Glove Compartment): Protects circuits for interior lights, the radio, power windows, and other accessories.

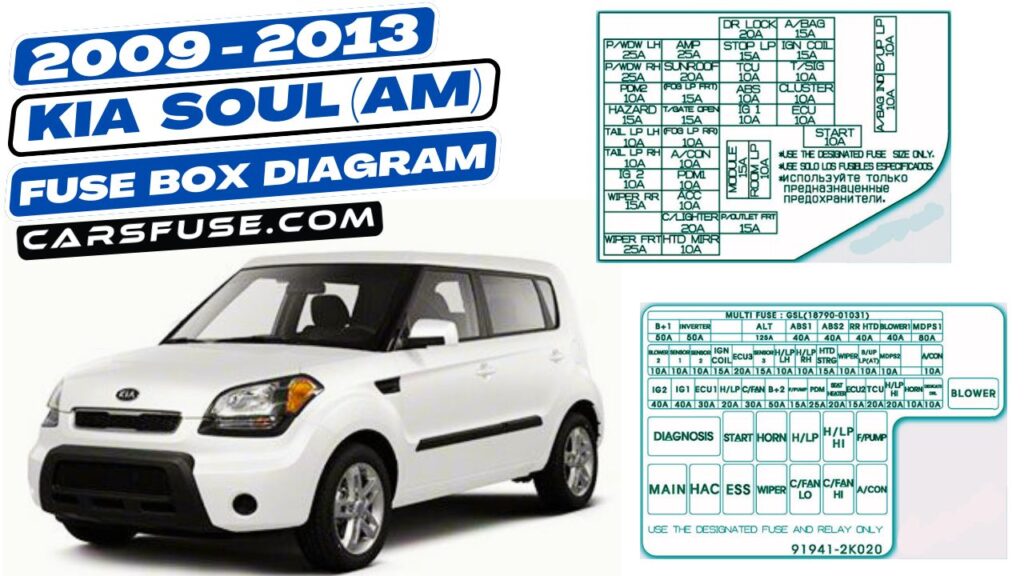

The fuse box diagram itself is typically found on the inside of the fuse box cover or in the vehicle’s owner’s manual. The diagram identifies each fuse by its function and amperage rating (measured in amps). This is critical for proper fuse replacement.
Practical Application
Using the Kia Soul fuse box diagram involves these steps:
- Identify the Problem: Determine which electrical component is not working (e.g., radio, headlights, power windows).
- Locate the Corresponding Fuse: Consult the Kia Soul fuse box diagram to find the fuse associated with the malfunctioning component. Refer to the owners manual if needed.
- Inspect the Fuse: Remove the fuse using a fuse puller (usually located in one of the fuse boxes). Visually inspect the fuse; a broken filament indicates a blown fuse.
- Replace the Fuse: Replace the blown fuse with a new fuse of the SAME amperage rating. Using a fuse with a higher amperage can damage the circuit.
- Test the System: Turn on the electrical component to verify that the problem is resolved.
1. Troubleshooting Common Fuse Related Issues
- Repeatedly Blown Fuses: This indicates a larger electrical problem, such as a short circuit. Seek professional assistance.
- Fuse Blows Immediately After Replacement: This also suggests a short circuit or other electrical fault.
- Difficulty Locating the Correct Fuse: Double-check the Kia Soul fuse box diagram and consult the owner’s manual.
2. Tips and Best Practices for Fuse Replacement
- Always Use the Correct Amperage: Never use a fuse with a higher amperage than specified.
- Keep Spare Fuses: Store a set of spare fuses in your vehicle for emergencies.
- Use a Fuse Puller: Avoid damaging the fuse box or the fuse itself by using a fuse puller.
- Disconnect the Battery (Optional): Disconnecting the negative battery terminal before working on the electrical system adds an extra layer of safety, reducing the risk of sparks.
FAQs About Kia Soul Fuse Boxes
-
Q: Where can I find the Kia Soul fuse box diagram?
A: The diagram is usually located on the inside of the fuse box cover or in your vehicle’s owner’s manual. -
Q: What does the amperage rating on a fuse mean?
A: The amperage rating indicates the maximum amount of current the fuse can handle before blowing. -
Q: Can I use a fuse with a higher amperage rating?
A: No, using a fuse with a higher amperage rating can damage the electrical circuit and potentially cause a fire. -
Q: What if I can’t find a fuse with the exact same amperage?
A: It is recommended to use the specified amperage. Using a lower amperage may result in the fuse blowing prematurely. -
Q: Why is my fuse box getting hot?
A: A hot fuse box is indicative of a problem. Seek professional repair.
Conclusion
Understanding and utilizing the Kia Soul fuse box diagram is an essential skill for any Kia Soul owner. It empowers you to diagnose and resolve minor electrical issues quickly and safely, saving you time and money. Regularly inspect your fuses and consult the diagram whenever you encounter an electrical problem to ensure the continued reliable operation of your vehicle.
