The fuse box in your Ssangyong Tivoli is a critical component of its electrical system, protecting sensitive circuits from overloads and potential damage. Understanding the fuse box diagram is essential for diagnosing and resolving electrical issues efficiently. This guide provides a comprehensive overview of the Ssangyong Tivoli fuse box, covering its location, fuse functions, troubleshooting tips, and safety precautions.
Benefits and Purpose of Understanding Your Fuse Box
- Quick Diagnosis: Easily identify the blown fuse associated with a specific electrical malfunction.
- Cost Savings: Avoid expensive trips to the mechanic by resolving minor electrical problems yourself.
- Preventing Further Damage: Replacing a blown fuse promptly can prevent further damage to your vehicle’s electrical components.
- Improved Vehicle Maintenance: A good understanding supports overall vehicle maintenance and longevity.
Key Components and Structure of the Fuse Box

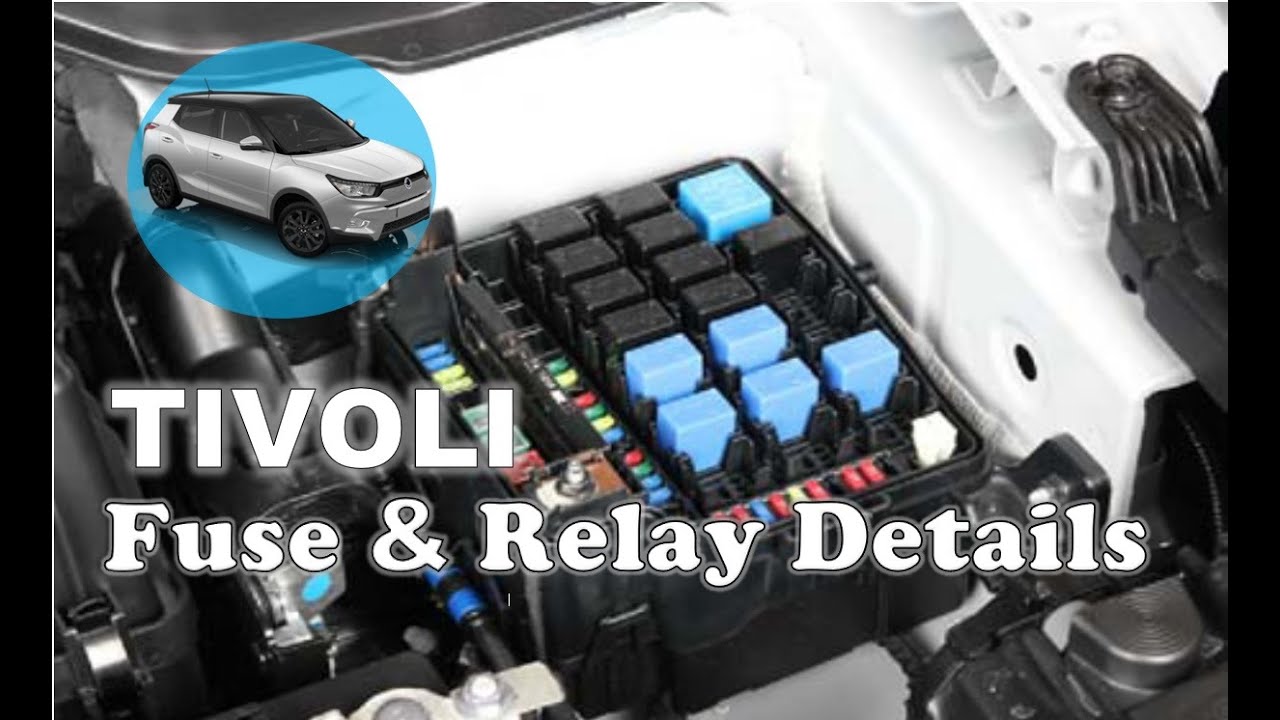

The Ssangyong Tivoli typically has multiple fuse boxes, often located in the passenger compartment (e.g., under the dashboard) and in the engine bay. Each fuse box contains a specific arrangement of fuses, relays, and other electrical components. A fuse box diagram, usually found on the inside of the fuse box cover or in the owner’s manual, illustrates the location and function of each fuse.
Common fuse box components include:
- Fuses: These protect circuits from overcurrent by melting and breaking the circuit.
- Relays: These are electrically operated switches that control higher-current circuits.
- Fuse Puller: A small tool used to safely remove fuses.
- Diagram/Legend: A map detailing the function of each fuse and relay.
Practical Application
When an electrical component in your Ssangyong Tivoli malfunctions (e.g., headlights, radio, power windows), the first step is to check the corresponding fuse. Follow these steps:
- Locate the Fuse Box: Refer to your owner’s manual for the location of the fuse box(es).
- Consult the Diagram: Identify the fuse associated with the malfunctioning component on the fuse box diagram.
- Inspect the Fuse: Use a fuse puller to remove the fuse and visually inspect it. A blown fuse will typically have a broken filament.
- Replace the Fuse: Replace the blown fuse with a new fuse of the same amperage rating. Important: Never use a fuse with a higher amperage rating than specified, as this can damage the circuit.
- Test the Component: After replacing the fuse, test the electrical component to ensure it is functioning correctly.
1. Troubleshooting Common Fuse Box Issues
- Repeatedly Blown Fuses: If a fuse blows repeatedly, there may be an underlying short circuit or overload in the circuit. This requires further investigation by a qualified technician.
- Corroded Fuse Box Terminals: Corrosion can lead to poor electrical contact and blown fuses. Clean the terminals with a wire brush and apply dielectric grease to prevent future corrosion.
- Incorrect Fuse Rating: Using a fuse with the wrong amperage rating can cause electrical problems. Always use the correct fuse rating as specified in the owner’s manual or on the fuse box diagram.
2. Tips for Working with Your Fuse Box
- Safety First: Always disconnect the negative terminal of the battery before working on the fuse box.
- Use the Right Tools: Use a fuse puller to avoid damaging the fuses or the fuse box.
- Keep a Spare Fuse Kit: Keep a kit of spare fuses of various amperage ratings in your vehicle.
- Consult a Professional: If you are unsure about any aspect of the fuse box or electrical system, consult a qualified mechanic.
- Refer to the Owner’s Manual: Your Ssangyong Tivoli owner’s manual contains valuable information about the fuse box and electrical system.
Frequently Asked Questions (FAQs)
- Q: Where can I find the Ssangyong Tivoli fuse box diagram? A: It’s typically located on the inside of the fuse box cover or in your owner’s manual.
- Q: What does the amperage rating on a fuse mean? A: The amperage rating indicates the maximum current that the fuse can handle before blowing.
- Q: Can I use a fuse with a higher amperage rating? A: No, never use a fuse with a higher amperage rating, as it can damage the electrical system.
- Q: What should I do if a fuse keeps blowing? A: This usually indicates a short circuit or overload, and you should consult a qualified technician.
- Q: Is it safe to work on the fuse box myself? A: Yes, but always disconnect the negative battery terminal first and follow the safety guidelines.
Conclusion
Understanding the Ssangyong Tivoli fuse box diagram empowers you to diagnose and resolve common electrical issues efficiently, saving time and money. By following the guidelines and safety precautions outlined in this guide, you can maintain your vehicle’s electrical system in optimal condition and ensure safe operation. Proper fuse identification, replacement, and troubleshooting are crucial for maintaining a reliable and functional vehicle. Remember to always consult your owner’s manual and, if unsure, seek professional assistance.
