Suzuki Jimny Fuse Box Location

The fuse box in a Suzuki Jimny is a critical component of its electrical system. It protects various circuits from overcurrents, preventing damage and ensuring the safe operation of electrical devices. Knowing the Suzuki Jimny fuse box location is essential for performing basic maintenance, troubleshooting electrical problems, and replacing blown fuses.

Benefits and Purpose

Understanding the fuse box provides numerous benefits:

• Protection of Electrical Circuits: Fuses prevent damage to wiring and electrical components due to overloads.
• Easy Troubleshooting: Identifying and replacing blown fuses can quickly resolve many electrical issues.
• DIY Maintenance: Simple fuse replacement saves time and money compared to professional mechanic visits.
• Preventative Maintenance: Regular inspection of fuses can help identify potential problems before they escalate.

Key Components and Structure of a Jimny Fuse Box

The Suzuki Jimny typically has at least one fuse box, and often two. The primary fuse box is usually located inside the cabin, while a secondary box may be found in the engine compartment. Knowing the Suzuki Jimny fuse box location is the first step, but understanding the box’s components is equally important.

• Fuse Box Housing: The protective enclosure for the fuses and relays.
• Fuses: Color-coded and amperage-rated devices designed to blow when the current exceeds a safe level. Common fuse types include blade fuses (ATO/ATC) and mini-blade fuses.
• Relays: Electrically operated switches that control higher-current circuits.
• Fuse Puller: A small plastic tool used to safely remove fuses without damaging them or the fuse box.
• Fuse Diagram: A label or document indicating the function and amperage rating of each fuse and relay. This is often found on the inside of the fuse box cover.

Practical Application

The precise location of the fuse boxes can vary slightly depending on the Jimny model year. However, the following guidelines generally apply:

1. Interior Fuse Box Location: Typically found under the dashboard, on the driver’s side. It may be behind a small access panel. Refer to the owner’s manual for the exact Suzuki Jimny fuse box location specific to your model year.

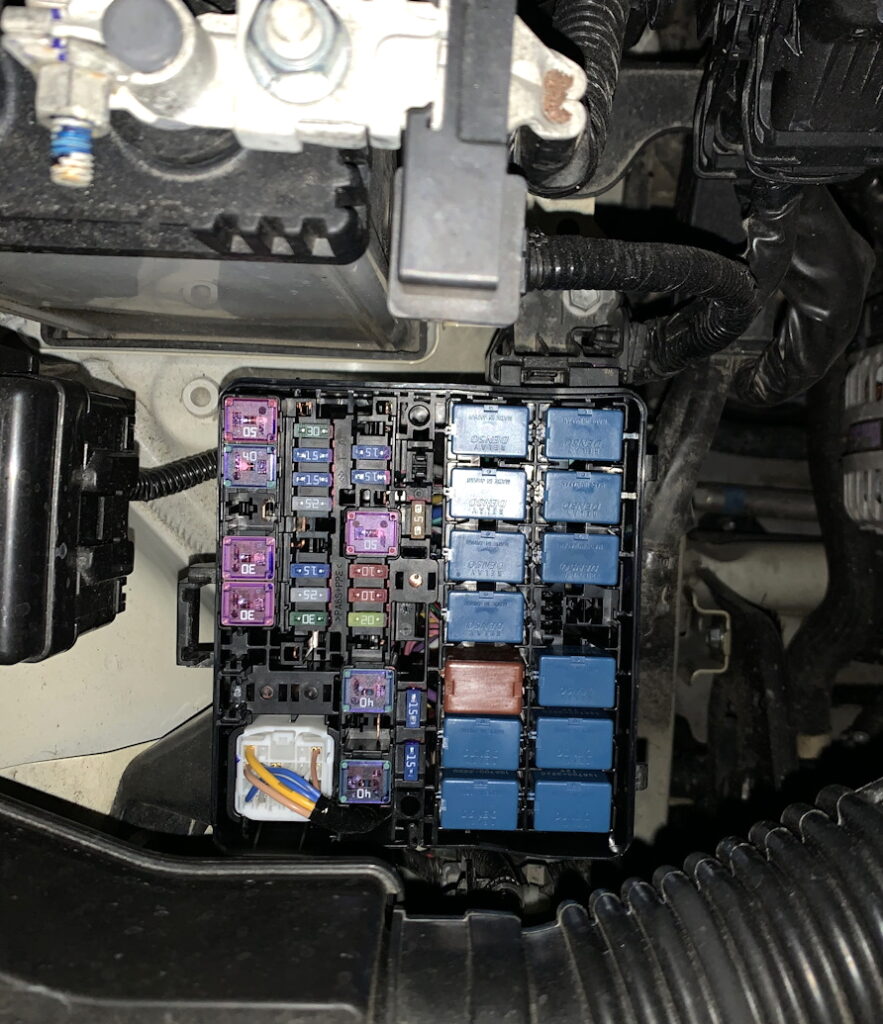

2. Engine Compartment Fuse Box Location: Usually located near the battery or on an inner fender.
3. Accessing the Fuse Box: Remove the access panel or fuse box cover by gently prying it open or unscrewing fasteners.
4. Identifying the Blown Fuse: Use the fuse diagram to locate the fuse associated with the malfunctioning component. Visually inspect the fuse. A blown fuse will typically have a broken filament.
5. Replacing the Fuse: Use a fuse puller to remove the blown fuse. Replace it with a new fuse of the same amperage rating.

1. Troubleshooting Common Issues

• Repeated Fuse Blowing: If a fuse blows repeatedly, it indicates a potential short circuit or overload in the associated circuit. Professional diagnosis may be required.
• Incorrect Fuse Rating: Using a fuse with a higher amperage rating than specified can damage the circuit and pose a fire hazard. Always use the correct fuse rating.
• Corroded Fuse Box Terminals: Corrosion can cause poor electrical connections and lead to fuse failures. Clean corroded terminals with a wire brush and electrical contact cleaner.

2. Tips for Fuse Box Maintenance

• Keep a Spare Fuse Kit: Carry a selection of commonly used fuses in your Jimny for quick repairs.
• Consult the Owner’s Manual: The owner’s manual provides detailed information on fuse locations, ratings, and troubleshooting tips specific to your model.
• Inspect Regularly: Periodically inspect the fuse box for signs of damage, corrosion, or loose connections.
• Document Changes: If you modify any electrical components, update your fuse diagram accordingly.

Frequently Asked Questions (FAQs)

1. Q: Where is the main fuse box located in a Suzuki Jimny?
   A: The main fuse box is typically located inside the cabin, under the dashboard on the driver’s side.
2. Q: What type of fuses does a Suzuki Jimny use?
   A: Jimnys commonly use blade fuses (ATO/ATC) and mini-blade fuses. Consult your owner’s manual for the specific type and amperage ratings for your model.
3. Q: Can I use a higher amperage fuse if I don’t have the correct one?
   A: No, using a higher amperage fuse can be dangerous and may damage the electrical system. Always use the correct fuse rating.
4. Q: How do I know if a fuse is blown?
   A: A blown fuse usually has a broken filament that can be seen through the fuse’s transparent housing.
5. Q: What if I can’t find my fuse box diagram?
   A: Check online forums, parts websites, or contact a Suzuki dealership. There are often digital versions available for download.

Conclusion

Knowing the Suzuki Jimny fuse box location and how to maintain it is a fundamental skill for any Jimny owner. By understanding the function of the fuse box, troubleshooting basic electrical issues, and following proper maintenance procedures, owners can ensure the reliable operation and longevity of their vehicle’s electrical system. This knowledge empowers owners to perform simple repairs, saving time and money while maintaining a safe and functional vehicle.
