The electrical system of the VW T-Roc, like any modern vehicle, relies on fuses to protect its circuits from overloads. A proper understanding of the VW T-Roc fuse box diagram is essential for diagnosing and resolving electrical issues. This comprehensive guide will walk you through the fuse box locations, diagram interpretation, practical applications, and troubleshooting tips to keep your T-Roc running smoothly.
Benefits and Purpose of Knowing Your Fuse Box Diagram
Knowing your VW T-Roc fuse box diagram offers several key benefits:
- Quick Troubleshooting: Identify and replace blown fuses quickly, restoring functionality to affected components.
- Preventative Maintenance: Understand circuit protection to prevent more significant electrical problems.
- Cost Savings: Avoid expensive trips to the mechanic for simple fuse replacements.
- Enhanced Vehicle Knowledge: Gain a deeper understanding of your vehicle’s electrical system.
Key Components and Structure of the VW T-Roc Fuse Box
The VW T-Roc typically has multiple fuse boxes. The most common locations are:
- Under the Dashboard (Driver’s Side): This is the primary fuse box and controls many essential vehicle functions.
- Engine Compartment: Houses fuses for high-current components like the engine control unit (ECU) and starter motor.

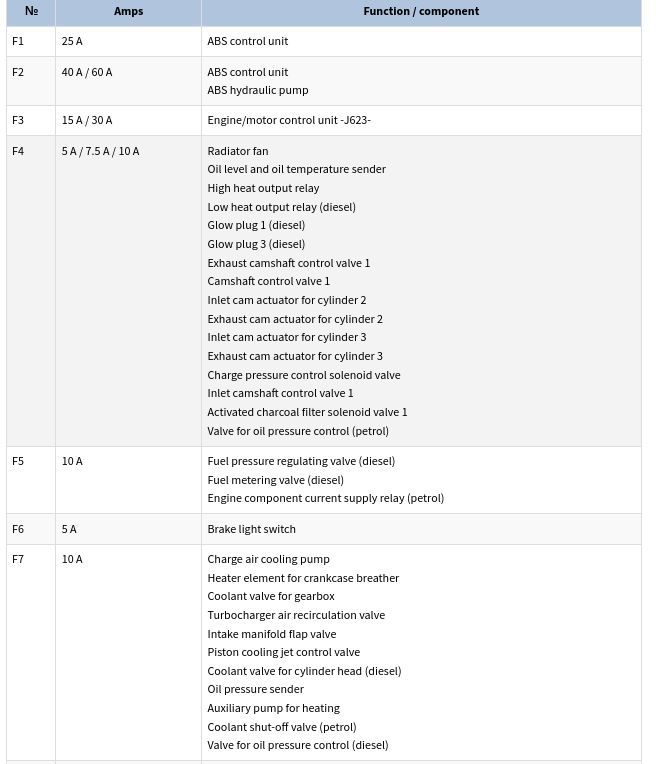

A VW T-Roc fuse box diagram will identify each fuse by its amperage rating and the component it protects. It’s crucial to consult the correct diagram for your specific model year, as fuse layouts can vary.
Practical Application
Using the VW T-Roc fuse box diagram effectively involves several steps:
- Locate the Diagram: Typically found in the owner’s manual or inside the fuse box cover.
- Identify the Affected Component: Determine which system or device is not working (e.g., headlights, radio, windshield wipers).
- Consult the Diagram: Find the fuse associated with the affected component on the diagram.
- Locate the Fuse: Physically locate the fuse in the corresponding fuse box.
- Inspect the Fuse: Check if the fuse is blown (the filament inside is broken).
- Replace the Fuse: Use a fuse puller to remove the blown fuse and replace it with a new fuse of the same amperage rating.
- Test the System: Verify that the replaced fuse has restored functionality to the affected component.
1. Troubleshooting Common Fuse-Related Issues
Here are some common issues related to fuses in the VW T-Roc:
- Repeatedly Blown Fuses: Indicates a short circuit or overload in the circuit. Requires further investigation by a qualified technician.
- Incorrect Fuse Rating: Using a fuse with a higher amperage rating than specified can damage components. Always use the correct rating as indicated in the VW T-Roc fuse box diagram.
- Corroded Fuse Box Contacts: Corrosion can impede electrical flow. Clean the contacts with a suitable electrical contact cleaner.
2. Tips and Best Practices for Fuse Maintenance
- Keep Spare Fuses: Always keep a set of spare fuses of various amperage ratings in your vehicle.
- Use a Fuse Puller: Avoid using metal tools to remove fuses, as this can damage the fuse box.
- Document Replacements: Keep a record of replaced fuses and the reasons for replacement.
- Consult a Professional: If you are unsure about any aspect of the electrical system, consult a qualified mechanic.
