The 2016 Hyundai Elantra’s fuse box is a crucial component of its electrical system, protecting various circuits from overloads. Understanding the fuse box diagram, its location, and the function of each fuse is essential for both routine maintenance and troubleshooting electrical issues. This guide provides a comprehensive overview of the 2016 Elantra’s fuse box, empowering you to diagnose and resolve common electrical problems safely and effectively.
Benefits and Purpose of the Fuse Box
The fuse box acts as the central protection point for the vehicle’s electrical system. Its primary benefits include:
- Overload Protection: Fuses prevent damage to sensitive components by interrupting circuits when excessive current flows.
- Circuit Isolation: Identifying and replacing blown fuses allows for the quick isolation and repair of specific electrical problems.
- Preventative Maintenance: Regularly checking fuses can help identify potential electrical issues before they cause significant damage.
- Cost Savings: Addressing minor electrical problems early by replacing fuses can prevent more costly repairs down the line.
Key Components and Structure of the Fuse Box
The 2016 Hyundai Elantra typically has two fuse box locations:
- Interior Fuse Box: Located inside the passenger compartment, often under the dashboard or in the glove compartment. This box usually houses fuses for interior components like the radio, lights, and power windows.
- Engine Compartment Fuse Box: Found under the hood, near the engine. This box contains fuses for essential engine components, the starting system, and other critical vehicle functions.

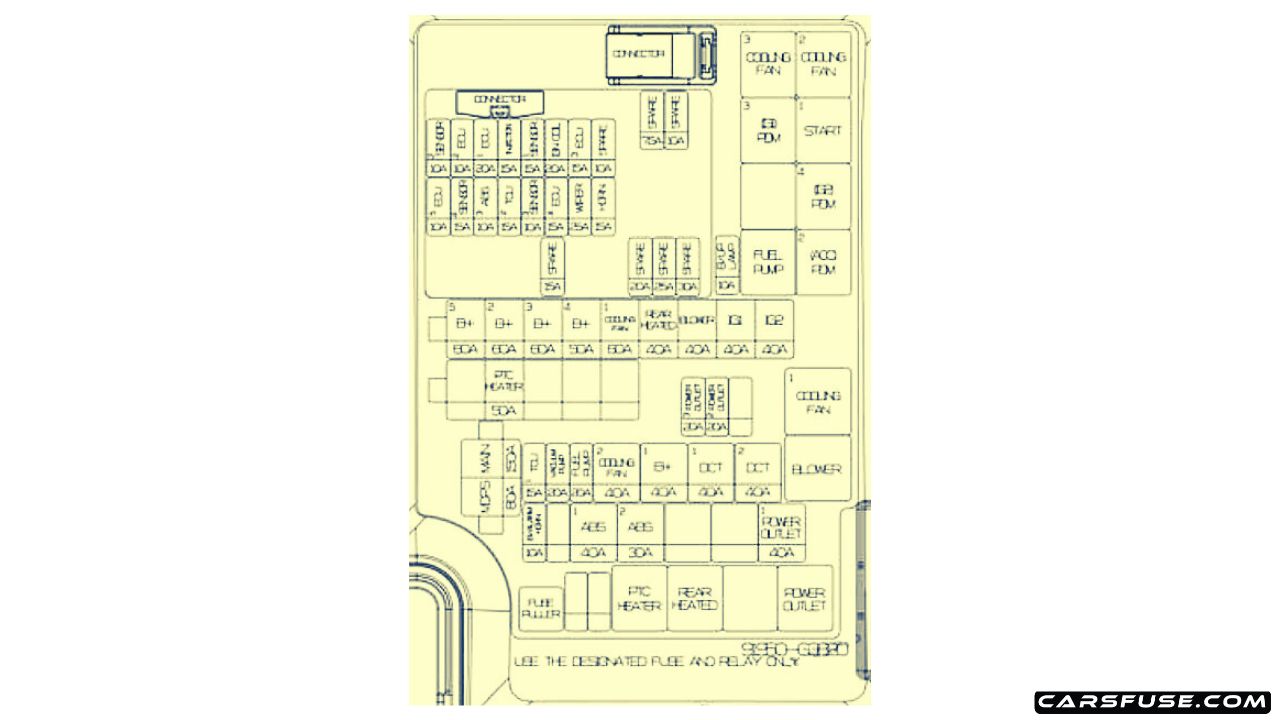

Understanding the fuse box diagram is essential. The diagram, typically found on the inside of the fuse box cover, shows the location of each fuse and its corresponding amperage rating. This rating indicates the maximum current the fuse can handle before blowing. Proper fuse replacement requires using the correct amperage to ensure the circuit is adequately protected.
Practical Application
To effectively use the fuse box, follow these steps:
- Locate the Fuse Box: Identify the interior and engine compartment fuse box locations in your 2016 Elantra.
- Consult the Diagram: Refer to the fuse box diagram on the inside of the cover. Note the fuse number, amperage rating, and the component it protects (e.g., “Radio – 10A”).
- Inspect Fuses: Visually inspect the fuses. A blown fuse will typically have a broken filament or a darkened appearance.
- Remove and Replace: Use a fuse puller (often found in the fuse box) to remove the blown fuse. Replace it with a new fuse of the exact same amperage rating.
- Test the Circuit: After replacing the fuse, test the circuit to ensure the component is functioning correctly.
1. Troubleshooting Common Fuse Issues
- Repeatedly Blown Fuses: Indicates a short circuit or overload in the connected circuit. Further diagnosis is required to identify the root cause, possibly involving a wiring inspection.
- Incorrect Fuse Amperage: Using a fuse with a higher amperage rating than specified can damage the circuit. Using a lower amperage fuse will likely cause it to blow prematurely.
- Fuse Corrosion: Corrosion can affect the fuse’s conductivity and cause intermittent issues. Clean corroded contacts or replace the fuse box if necessary.
2. Tips and Best Practices
- Always Disconnect the Battery: Before working on the fuse box, disconnect the negative terminal of the battery to prevent accidental shorts.
- Use the Correct Fuse Type: Ensure you are using the correct type of fuse (e.g., blade fuse, mini-blade fuse) for your 2016 Elantra.
- Keep Spare Fuses: Keep a selection of spare fuses with various amperage ratings in your vehicle for emergencies.
- Document Fuse Replacements: Keep a record of any fuses you have replaced and the reason for replacement.
- Consult a Professional: If you are unsure about any aspect of fuse replacement or electrical troubleshooting, consult a qualified automotive technician.
Frequently Asked Questions (FAQs)
- Q: Where is the fuse box located in my 2016 Hyundai Elantra? A: The 2016 Elantra has two fuse boxes: one inside the passenger compartment and another under the hood in the engine bay.
- Q: What does the fuse box diagram tell me? A: The diagram shows the location of each fuse, its amperage rating, and the component it protects.
- Q: What should I do if a fuse keeps blowing? A: Repeatedly blown fuses indicate a more significant electrical problem that requires professional diagnosis.
- Q: Can I use a fuse with a higher amperage rating? A: No. Using a fuse with a higher amperage rating can damage the circuit and create a fire hazard. Always use the specified amperage.
- Q: Where can I find replacement fuses for my Elantra? A: Replacement fuses are readily available at auto parts stores and online retailers.
Conclusion
Understanding the 2016 Hyundai Elantra fuse box diagram is crucial for maintaining your vehicle’s electrical system and addressing common electrical problems. By following the guidelines outlined in this article, you can confidently troubleshoot fuse-related issues, ensuring the safe and reliable operation of your vehicle. Remember to always prioritize safety and consult a professional if you are unsure about any electrical repairs.
