Renault Grand Scenic Fuse Box

The Renault Grand Scenic relies on a complex electrical system powered and protected by various fuses housed within fuse boxes. Understanding the location, function, and troubleshooting of the Renault Grand Scenic fuse box is crucial for maintaining your vehicle’s electrical health and preventing costly repairs. This guide provides essential information for owners and mechanics.

Benefits of Understanding Your Renault Grand Scenic Fuse Box

Knowing the ins and outs of your vehicle’s fuse box offers several key advantages:

• Quick Troubleshooting: Identify and resolve minor electrical problems (blown fuses) quickly and easily.
• Preventative Maintenance: Early detection of recurring fuse failures can indicate underlying issues.
• Cost Savings: Avoid expensive mechanic visits for simple fuse replacements.
• Safety: Replacing fuses with the correct amperage is crucial for preventing electrical fires.
• DIY Repairs: Confidently perform basic electrical repairs involving components controlled by fuses.

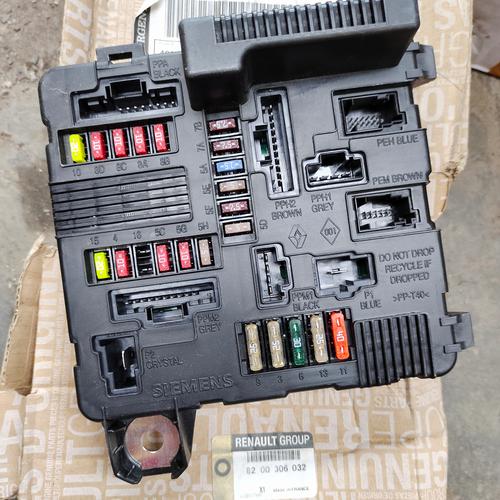

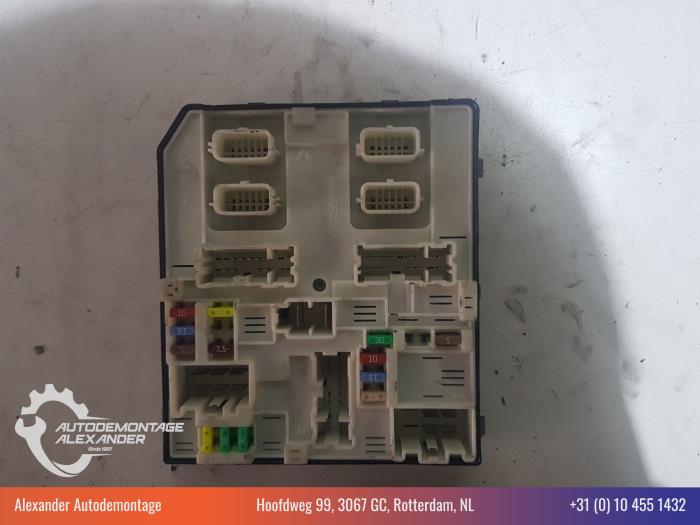

Key Components and Structure of the Fuse Box

The Renault Grand Scenic fuse box isn’t a single unit; it’s typically comprised of multiple locations within the vehicle. Key areas to consider include:

• Engine Compartment Fuse Box: Usually houses fuses and relays controlling vital engine components like the fuel pump, ignition system, and engine control unit (ECU).
• Interior Fuse Box (Dashboard): Often located in the dashboard, behind the glove compartment, or under the steering wheel. This controls interior electronics such as lights, wipers, and infotainment system.
• Boot (Trunk) Fuse Box (if applicable): Some models may have a fuse box in the boot for rear-related functions.

Each fuse box contains a variety of fuses, each with a specific amperage rating. A fuse diagram, often located on the fuse box cover or in the vehicle’s owner’s manual, indicates which fuse corresponds to which circuit. Understanding this diagram is crucial for correct identification and replacement.

Practical Application

Here’s a step-by-step guide to finding and replacing a blown fuse in your Renault Grand Scenic:

1. Consult Your Owner’s Manual: Locate the fuse diagram for your specific Grand Scenic model year and trim.
2. Identify the Faulty Circuit: Determine which electrical component isn’t working (e.g., a specific headlight).
3. Locate the Corresponding Fuse: Using the fuse diagram, find the fuse associated with the faulty circuit.
4. Access the Fuse Box: Remove the fuse box cover. This may require a screwdriver or simply releasing clips.
5. Inspect the Fuse: Visually check the fuse. A blown fuse will have a broken filament.
6. Replace the Fuse: Use a fuse puller (if available) to remove the blown fuse. Replace it with a new fuse of the exact same amperage rating. Never use a fuse with a higher amperage rating.
7. Test the Circuit: Turn on the electrical component to verify that the new fuse has resolved the issue.
8. Reinstall the Cover: Securely reattach the fuse box cover.

1. Troubleshooting Common Issues

Recurring blown fuses often indicate a short circuit or overload. Common culprits include:

• Faulty Wiring: Damaged or frayed wires can cause short circuits.
• Overloaded Circuits: Connecting too many devices to a single circuit.
• Defective Components: A failing electrical component can draw excessive current.

2. Tips for Best Practice

• Always Use the Correct Amperage: Replacing a fuse with the wrong amperage can be dangerous and cause damage.
• Keep Spare Fuses: Carry a set of spare fuses in your vehicle.
• Investigate Recurring Blows: Don’t simply keep replacing fuses. Identify and address the underlying cause.
• Consult a Professional: If you’re unsure about any aspect of electrical troubleshooting, consult a qualified mechanic.
• Battery Safety: Disconnect the negative battery terminal before working on the electrical system for added safety, although this isn’t always necessary for simple fuse replacement.

FAQs

Q: Where can I find the fuse diagram for my Renault Grand Scenic?

A: The fuse diagram is typically located on the fuse box cover or in the vehicle’s owner’s manual. You may also find it online with a dedicated search engine request including your car’s year.

Q: What happens if I use a fuse with a higher amperage rating?

A: Using a fuse with a higher amperage rating can allow excessive current to flow through the circuit, potentially damaging components and causing an electrical fire.

Q: How do I know if a fuse is blown?

A: A blown fuse will usually have a visible break in the filament inside the fuse.

Q: Can I repair a blown fuse?

A: No, blown fuses should always be replaced with new fuses of the correct amperage rating.

Q: What does a fuse do?

A: Fuses are safety devices designed to protect electrical circuits from overcurrent, preventing damage to components and reducing the risk of fire. They contain a metal strip designed to melt and break the circuit if the current exceeds a safe level.

Conclusion

Understanding the Renault Grand Scenic fuse box is a vital part of vehicle maintenance. By knowing the location of the fuse boxes, understanding the fuse diagram, and following proper troubleshooting procedures, owners can address minor electrical issues quickly and effectively, ensuring the continued safe and reliable operation of their vehicle. Addressing any recurring problems found is crucial in maintaining electrical integrity and should be addressed by a qualified professional.
